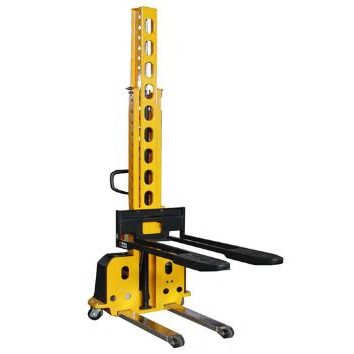

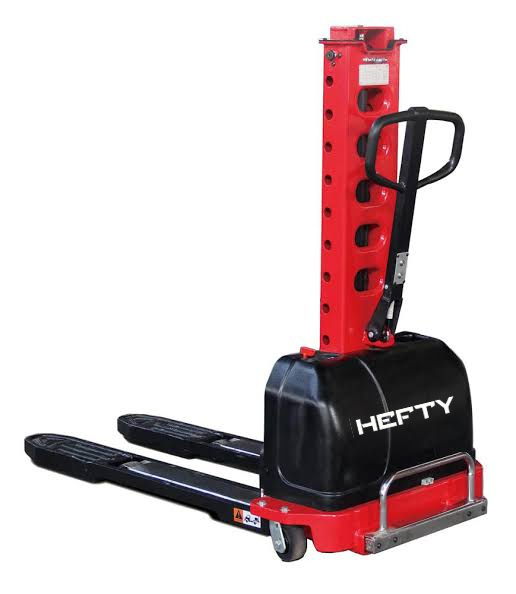

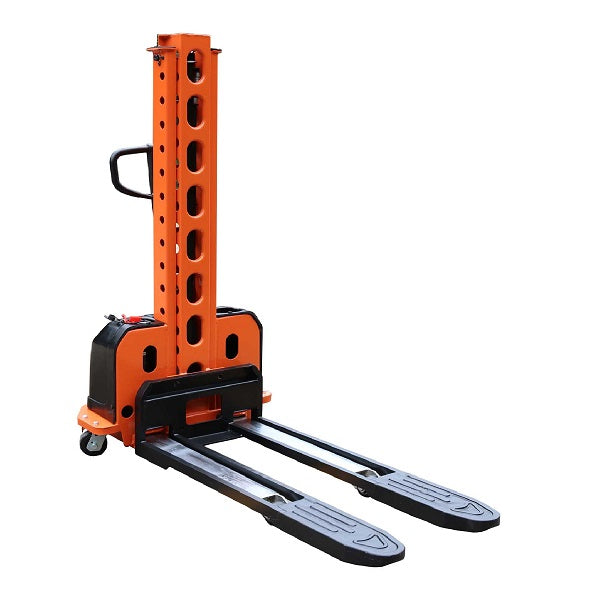

Hefty Self lifting stacker
All prices inclusive of GST.
Product Description
product performance:
Electric lifting, electric walking, saving manpower and improving work efficiency.
A car dual-use, usually not accompanied by the car can also be put into the warehouse handling.
Equipped with pull-out lithium battery, portable charging, flexible charging, long life.
With intelligent combination lock integrated handle control walking lift, easy to use.
Multi-functional innovative truck carrying forklift, self climbing, handling stack.
Note: Can only be used on single sided trays.
2. Packed size:
Load 1.3ton, lift height: 1.3m ( 175*100*180cm. Weight about 430kg)
Load 1.3ton, lift height: 1.5m (180*100*200cm. Weight about 440kg)
Product Specification:
|
HEFTY INDUSTRIAL EQUIPMENT |
||
|
Feature |
|
|
|
Model |
unit |
SES13 |
|
Operation type |
|
Full Electric |
|
Load capacity |
kg |
1300 |
|
Load center |
mm |
400 |
|
Dimension |
|
|
|
Lifting height |
mm |
1100/1300/1500 |
|
Mast lower height |
mm |
1450/1650/1850 |
|
Mast extend height |
mm |
2680/2880/3080 |
|
Overall length |
mm |
1730 |
|
Overall width of frame |
mm |
910 |
|
Wheel base |
mm |
985 |
|
Fork length |
mm |
1200 |
|
Overall fork width |
mm |
600 |
|
Fork inside width |
mm |
210 |
|
MiniTurning radius |
mm |
1300 |
|
Fork lowered height |
mm |
90 |
|
（800*1200tray）Channel width |
mm |
1880 |
|
（1000*1200tray）Channel width |
mm |
2080 |
|
Wheels |
|
|
|
Wheels type |
|
PU |
|
Front wheel |
mm |
￠78*50 |
|
Size of drive wheels |
mm |
￠190*75 |
|
Number of wheels |
pcs |
1+1+3 |
|
Performance |
|
|
|
Lift speed (laden/unladen) |
mm/s |
135/140 |
|
lowering speed（laden/unladen) |
mm/s |
145/140 |
|
Gradeability（laden/unladen) |
% |
3.0/5.0 |
|
Electrical configuration |
|
|
|
Type or drive motor |
|
DC motor |
|
Rated output |
km |
0.75 |
|
Hoist motor type |
|
DC motor |
|
Rated output |
km |
2 |
|
Battery voltage/capacity |
V/Ah |
48V30AH |
|
Weight |
|
|
|
weight |
kg |
430 |
