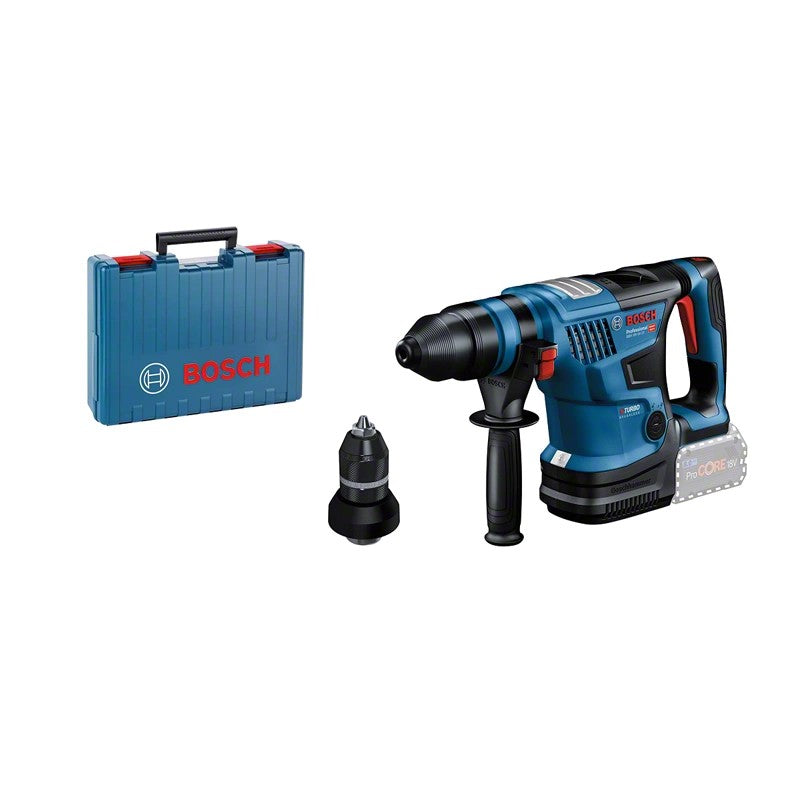

The market´s most powerful cordless SDS plus hammer
- Paramount performance with 5.8 J – the most powerful cordless SDS plus hammer in its range for tough jobs in concrete
- Perfect control – soft start for precise chiselling and 3 different working modes to ensure the right setting for any job

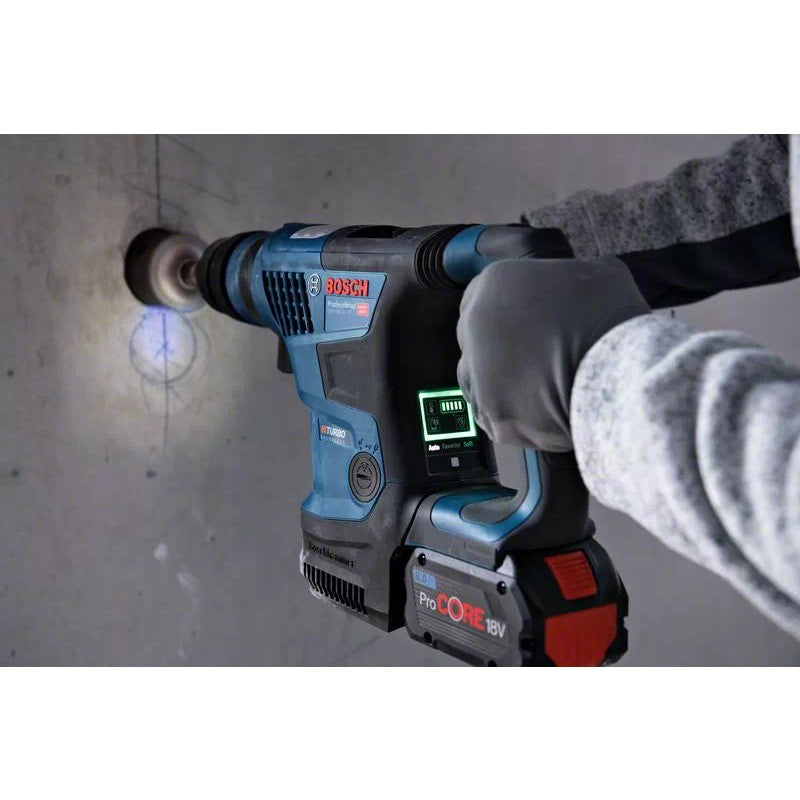

- Smartest SDS plus hammer – real-time tool status via user interface, individual adjustments by Bluetooth via Bosch Toolbox app
|
Additional data |
|
|---|---|
|
Battery voltage |
18.0 V |
|
Impact energy (according to EPTA 05/2016) |
5.8 J |
|
Weight excl. battery |
4.9 kg |
|
Impact rate at rated speed |
0 – 2,900 bpm |
|
Rated speed |
0 – 500 rpm |
|
Tool holder |
SDS plus |
|
Drilling range |
|
|---|---|
|
Drilling dia. in concrete with hammer drill bits |
8 – 32 mm |
|
Opt. app. range in concrete with hammer drill bits |
12 – 30 mm |
|
Max. drilling diameter in metal |
13 mm |
|
Max. drilling diameter in wood |
40 mm |
|
Total vibration values (Hammer drilling in concrete) |
|
|---|---|
|
Vibration emission value ah |
10.9 m/s² |
|
Uncertainty K |
1.5 m/s² |
|
Total vibration values (Chiselling in concrete) |
|
|---|---|
|
Vibration emission value ah |
11.7 m/s² |
|
Uncertainty K |
1.5 m/s² |
|
Noise/vibration information |
|
|---|---|
|
Sound pressure level |
92 dB(A) |
|
Sound power level |
103 dB(A) |
|
Uncertainty K |
3 dB |
|
Hammer drilling in concrete |
|
|---|---|
|
Vibration emission value ah |
10.9 m/s² |
|
Uncertainty K |
1.5 m/s² |
|
Chiselling in concrete |
|
|---|---|
|
Vibration emission value ah |
11.7 m/s² |
|
Uncertainty K |
1.5 m/s² |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 92 dB(A); Sound power level 103 dB(A). Uncertainty K= 3 dB.
