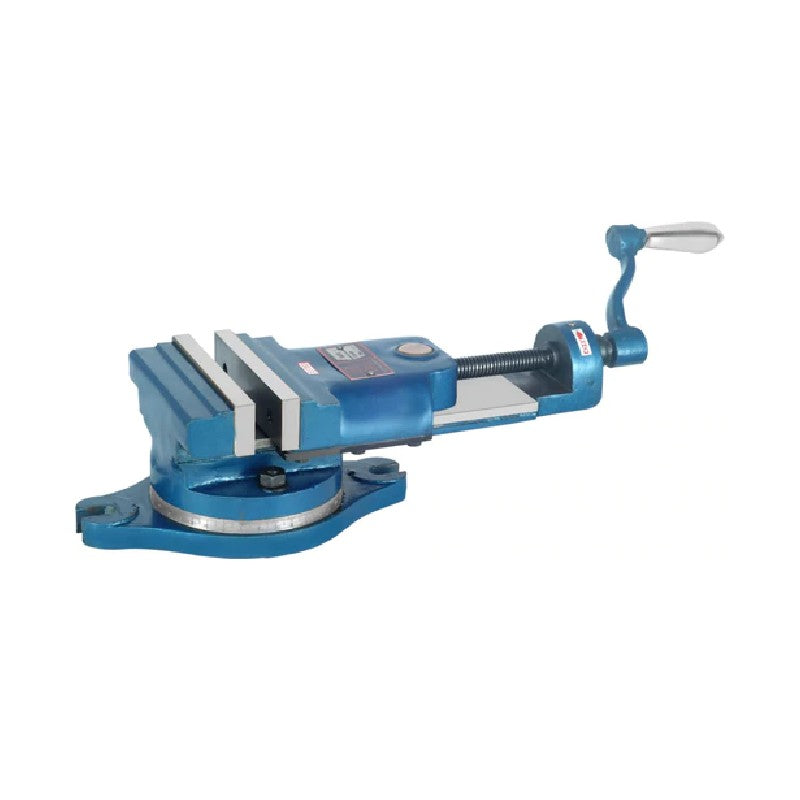

Apex-Precision Machine Vice Swivel Base S.G. Iron Body 720
Product Description :
- The most versatile of all machine vices with all degrees of freedom, the Universal Vice allows the work piece to be set at any desired angle.
- The specific advantage of this Vice is its ability to be set perpendicular to the base, thereby allowing right angle machining on the same machine setting.
- Allows for the job to be set at low heights, particularly suitable for the most complicated grinding applications.
- A fully graduated 360° swivel base allows complete rotation along the vertical axis. The third angular side with a moving axis allows for any setting in the 3D.
- Sliding jaw runs on accurately ground surfaces fitted with hardened steel keep strips ensuring perfect alignment and rigidity.
- All swiveling movements have positive locking.
- "Hold Down" slots allow for secure clamping of the vice on the work table
Product Specifications :
RANGE |
4 Inches |
6 Inches |
Height Overall (In mm) |
100 |
120 |
Length Overall (In mm) |
305 |
470 |
Width Overall (In mm) |
110 |
155 |
Depth of Jaws (In mm) |
25 |
40 |
Opening of Jaws (In mm) |
65 |
115 |
Width of Jaws (In mm) |
100 |
150 |
Tenon slot size |
16 |
16 |
Weight In (Kgs) |
7 |
18 |
